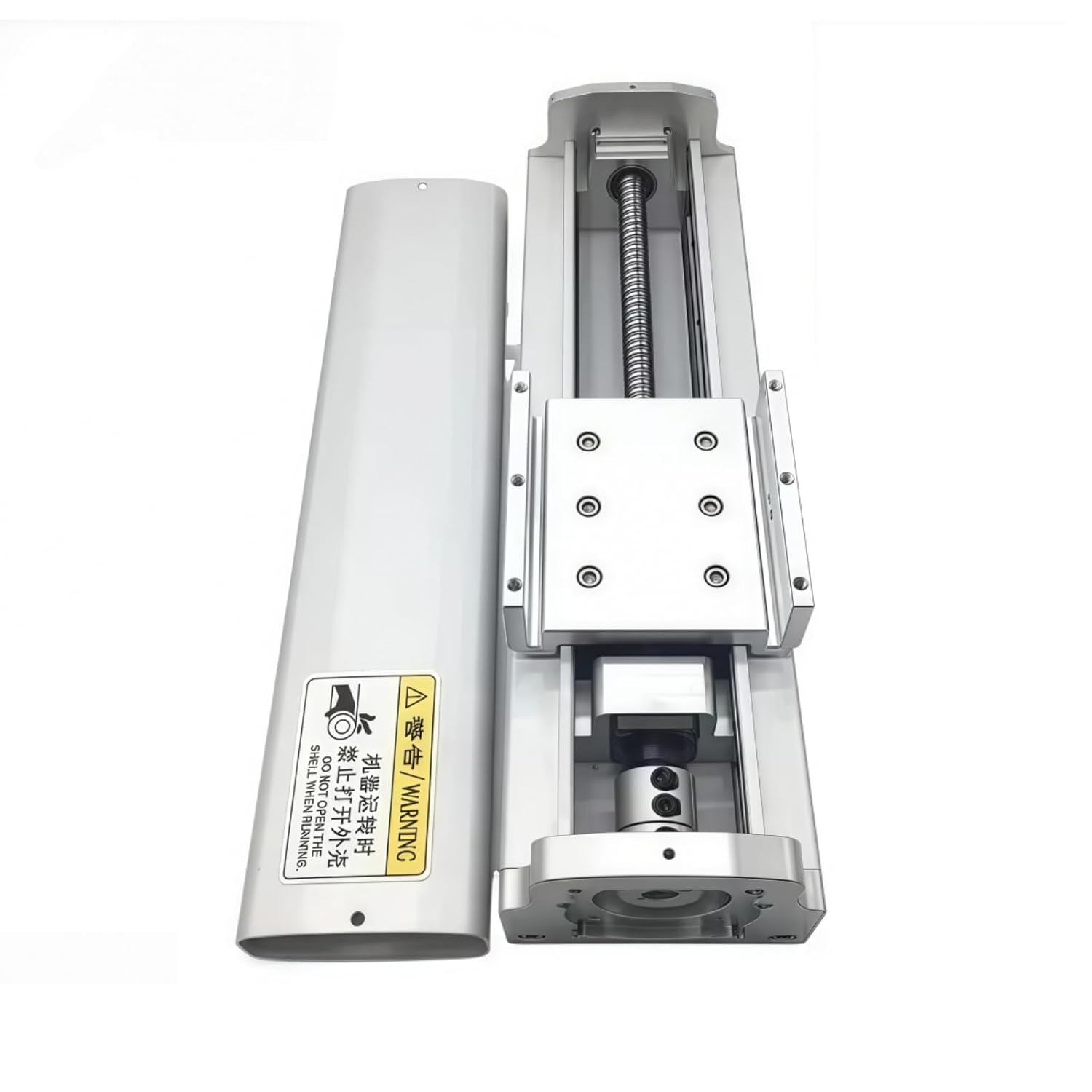

Linear Stage Table 4" 100mm Stroke CNC Linear Slide Rail Guide Motion Stage 1605 Ball Screw Fully Enclosed Heavy Load 220 lb Waterproof Dustproof with Nema 23 34 Stepper Motor Bracket
4.3 (149 items)
Limited Time SaleUS$107.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215612412 | Release Date | 2026/04/12 | List Price | US$72.00 | Model Number | 215612412 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

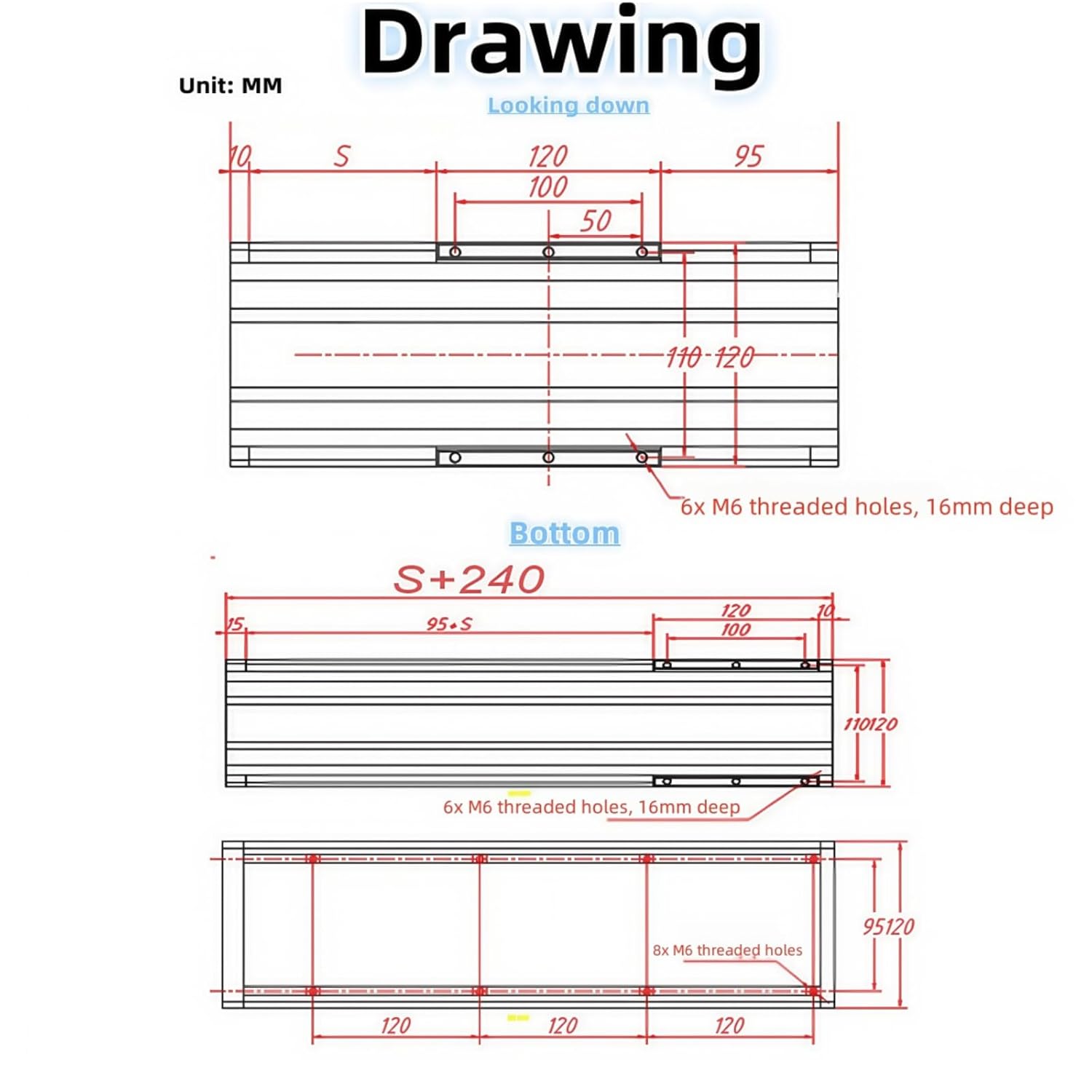

- Double Rail Slide Table Precision Dimensions: Linear stage sliding table effective 4 Inch(100mm) stroke travel with total length: 13.4 Inch (340 mm)=Stroke travel+ 9.5 inch / 240mm.
- Ballscrew: SUF1605 specification(Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm). C7 Grade Ballscrew – ±0.05mm repeat accuracy for flawless milling, engraving, or laser cutting.
- Linear guide & guide slide: Double track linear rail, Aviation aluminum 6061 material. The guide rail surface is smooth, with low friction and low sliding noise. The slider is equipped with dust baffle and retainer, Max 220 lb / 100KG Horizontal, 110 lb / 50KG Vertical Load.
- Integrated Protective Cover: The slider is equipped with dust baffle and steel retainer, effective dust proof, shields the SFU1605 ballscrew and rails from dust, debris, and workshop contaminants.
- Featuring three couplings: CNC linear stage actuator slide table with nema23 & nema34 stepper motor brackets. The 2 couplings accommodate:0.25-inch (6.35mm) shafts & 0.315-inch (8mm) shafts(for Nema 23 stepper motors); the 1 pcs couplings accommodate: 0.55 inch (14mm) shafts(for Nema 34 stepper motors).
